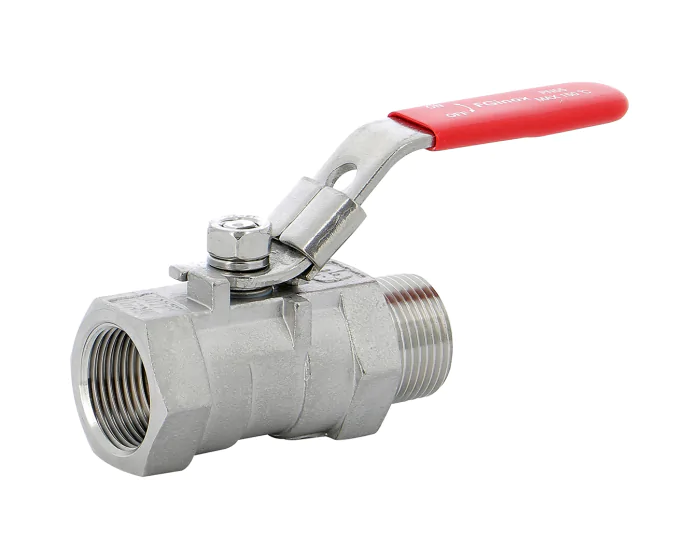

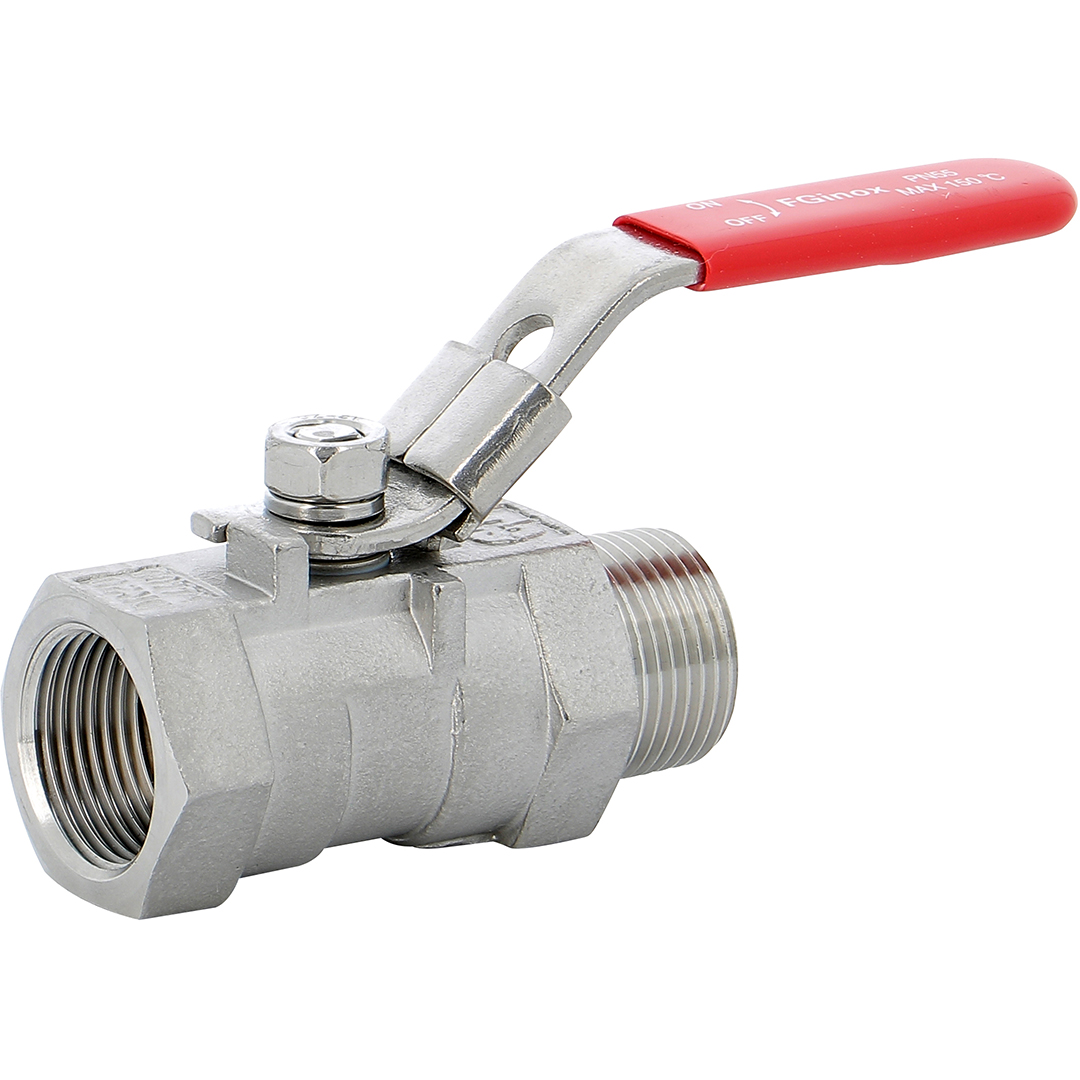

The 708MF series ball valve, 1 piece body, male/female BSP connection, PN40, with full ball, reduced bore, stainless steel body, ball and shaft, PTFE seats.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 12516-2 |
| Thread standard | ISO 7-1 R/ISO 228-1 |
| Tightness test standard | API 598 |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 590.0 |
| Fluid | Acids |
| Kv (m³/h) | 0.9 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Reduced |
| ISO pad 5211 | No |
| PS (bar) | 55 |
| Connections | BSP MF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 150 |
| TS min (°C) | -10 |
| Ball valve design | Monobloc |
| Warranty period | 2 years |
| Handle material | Stainless steel AISI 304 |
| Handle type | Blue lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP MF Stainless steel CF8M (1.4408) Reduced Monobloc 1/4'' | 708MF02 | S1008034 |
€6.27
(excl. btw)
|
add to cart |
| BSP MF Stainless steel CF8M (1.4408) Reduced Monobloc 3/8'' | 708MF03 | S1008035 |
€6.89
(excl. btw)
|
add to cart |
| BSP MF Stainless steel CF8M (1.4408) Reduced Monobloc 1/2'' | 708MF04 | S1008036 |
€8.47
(excl. btw)
|
add to cart |
| BSP MF Stainless steel CF8M (1.4408) Reduced Monobloc 3/4'' | 708MF05 | S1008037 |
€11.01
(excl. btw)
|
add to cart |
